• Paint, solid
• Bumper, front, chrome, with Gray lower
• Bumper, rear, chrome step, includes pad (Not available with (ZW9) Pickup bed, delete)
• Air dam, Gray
• Moldings, bodyside (Moldings are color-keyed.) (Not available with (ZW9) Pickup bed delete)
• Wheel flares (Refer to Color and Trim chart for compatibility. Front only when (ZW9) Pickup bed delete is ordered)
• Grille, color-keyed surround, with chrome accent bar
• Headlamps, dual halogen composite, includes flash-to-pass feature and automatic lamp control
• Daytime running lamps, includes automatic exterior lamp control
• Lamps, dual cargo area lamps
• Mirrors, outside rearview, manual folding, power, heated, Black (Upgradeable to (DL3) Mirrors, outside rearview, power folding, power, heated or may be substituted with (DPF) Mirrors, outside rearview, power, heated, camper-style.)
• Glass, Solar-Ray light tinted, all windows
• Windows, rear quarter swing-out (Standard with Extended Cab Models only.)
• Wipers, intermittent, front, wet-arm with pulse washers

• Seat trim, Custom Cloth
• Seats, front 40/20/40 split-bench, 3-passenger, driver and passenger manual reclining, center fold-down armrest with storage, adjustable outboard head restraints and storage pockets on Extended Cab Models (Not available with (UC6) Sound system, ETR AM/FM stereo with 6-disc CD changer.)
• Seats, rear bench, folding, 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab Models.)
• Floor covering, color-keyed carpeting and rubberized vinyl floormats (May be substituted with (BG9) Floor covering, rubberized vinyl)
• Steering wheel, leather-wrapped rim, Black, steel sleeve, includes theft-deterrent locking feature
• Theft-deterrent system, PASSlock II
• Warning tones, headlamp on, key-in-ignition, driver and passenger seat belt reminder, turn signal on
• Defogger, rear-window, electric (Deleted when (A28) Window, rear sliding is ordered)
• Cruise control, electronic with set and resume speed, includes telltale in instrument panel cluster
• Door locks, power
• Windows, power, includes driver express-down
• Keyless entry, remote, includes 2 transmitters, panic button and content theft alarm
• Air conditioning, dual-zone, manual, individual climate settings for driver and right front passenger
• Sound system, ETR AM/FM stereo with CD player, includes seek-and-scan, digital clock, auto-tone control, speed-compensated volume, and Radio Data System (RDS) (Requires (AE7) Seats, front 40/20/40 split-bench. Upgradeable to (UB1) Sound system, ETR AM/FM stereo with CD and cassette player or (UC6) Sound system, ETR AM/FM stereo with 6-disc CD changer on Extended and Crew Cab Models. - Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab Models.)
• Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models.)
• Cigarette lighter, on instrument panel
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Mirror, inside rearview, electrochromic (light-sensitive auto dimming), 8-point compass and outside temperature indicator
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Console, overhead mini, includes map lights
• Assist handle, front passenger (Also includes rear outboard passenger assist on Extended and Crew Cab Models.)
• Lighting, dome lamp, reading, courtesy, illuminated entry feature, backlit instrument panel switches and door handle-activated illuminated entry
• Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models.)

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver and right front passenger (Regular and Extended Cab Models includes passenger side deactivation switch. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information)
• Daytime running lamps, includes automatic exterior lamp control

HEAVY-DUTY POWER PACKAGE,

• includes (LLY) Engine
• Duramax 6600 Turbo Diesel
• (M74) Transmission
• Allison 1000 5-speed automatic
• and (G80) Differential
• locking
• heavy-duty
• rear

ENGINE, DURAMAX 6600 TURBO DIESEL V8

• (300 HP [223.8 kW] @ 3100 rpm
• 520 lb.-ft. [702.0 N-m] @ 1800 rpm) (Includes (TQ3) Battery
• heavy-duty dual
• 770 cold-cranking amps
• (K05) Engine block heater and (K47) Air cleaner
• high capacity.)

TRANSMISSION, ALLISON 1000 5-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WITH OVERDRIVE, TOW/HAUL MODE,

• (KNP) Cooling
• external transmission oil cooler and electronic engine grade braking

PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND PASSENGER MANUAL RECLINING, CENTER FOLD-DOWN ARMREST WITH STORAGE, ADJUSTABLE OUTBOARD HEAD RESTRAINTS, AND STORAGE POCKETS ON EXTENDED CAB MODELS

• (STD)

SEAT ADJUSTER, POWER DRIVER 6-WAY

• (Included with (A95) Seats
• front reclining buckets. -Included with (**2) Seat trim
• leather on Extended and Crew Cab Models)

GLASS, SOLAR-RAY DEEP TINTED

• (all windows except light tinted glass on windshield)

GVWR, 9200 LBS. (4173 kg)

• (STD)

MIRRORS, OUTSIDE REARVIEW, POWER, HEATED, CAMPER-STYLE,

• includes power extending arms and turn signal indicators

ENGINE BLOCK HEATER

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8)

AIR CLEANER, HIGH-CAPACITY

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8. -Included with (Z82) Trailering equipment
• heavy-duty. -Included with (VYU) Snow plow prep package)

TRANSFER CASE, ELECTRONIC SHIFT,

• includes push-button controls

WHEELS, 4-16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG POLISHED FORGED ALUMINUM,

• includes chrome center caps and steel spare

TIRES, LT245/75R16E, ALL-SEASON, BLACKWALL

• (STD) (Includes 5 tires with (E63) Pickup bed
• Fleetside box. -Includes 4 tires with (ZW9) Pickup bed
• delete)

BATTERY, HEAVY-DUTY DUAL, 770 COLD-CRANKING AMPS,

• includes rundown protection and retained accessory power

SOUND SYSTEM, ETR AM/FM STEREO WITH CD AND CASSETTE PLAYER,

• includes seek-and-scan
• digital clock
• auto-tone control
• speed-compensated volume
• TheftLock
• Radio Data System (RDS) and 4-speakers on Regular Cab Models
• 6 speakers on Extended and Crew Cab Models (with bucket seats UB1 includes Bose speaker system
• Bose amplifier and Bose subwoofer)

TRAILERING EQUIPMENT, HEAVY-DUTY,

• includes trailering hitch platform
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• 7-way to 4-way trailer adapter
• instrument panel jumper wiring harness for electric trailer brake controller
• and 1-way sealed connector for center high-mounted stop/brake lamp. Also includes (K47) Air cleaner
• high capacity

PAINT, SOLID

• (STD)

• Heavy-Duty Power Package: Duramax 6600 Turbo Diesel V8 Engine; Allison 1000 5-Speed Automatic Transmission with Overdrive; Heavy-Duty Rear Locking Differential
• LS Decor 1SB: Rear Chrome Step Bumper with Pad; Electric Rear-Window Defogger; Electronic Cruise Control with Set and Resume Speed; Overhead Mini Console with Map Lights; Black Manual Folding Outside Rearview Mirrors; Electrochromic Inside Rearview Mirror; Black Leather-Wrapped Steering Wheel Rim; Color-Keyed Grille Surround with Chrome Accent Bar; Remote Keyless Entry with 2 Transmitters; Power Door Locks; Color-Keyed Carpeting with Rubberized Vinyl Floormats; Power Windows with Driver and Passenger Express-Down; Color-Keyed Bodyside Moldings
• ETR AM/FM Stereo with CD and Cassette
• Heavy-Duty Rear Locking Differential
• 6-Way Power Driver Seat Adjuster
• Power Heated Camper-Style Outside Rearview Mirrors
• Heavy-Duty Trailering Equipment
• 16" X 6.5" Polished Forged Aluminum Wheels
• Solar-Ray Deep Tinted Glass
• Cruise control
• Driver seat power cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD
• Duramax 6.6L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 300HP
• Duramax 6.6L V-8
• Mechanical
• Dual-zone front climate control
• PASSLock II immobilizer
• Power extendable trailer mirrors
• Leather steering wheel
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Metallic paint
• Chrome hub wheel covers
• 16 x 6.5-inch front and rear polished aluminum wheels
• LT245/75SR16 AS BSW front and rear tires
• Premium cloth front seat upholstery
• 2 airbags
• Driver front impact airbag
• Cancellable front passenger air bag
• Auto-locking doors
• Intercooled turbo
• Allison 5-speed automatic
• Selectable mode transmission
• Premium cloth rear seat upholstery
• Manual climate control
• Rear under seat climate control ducts
• Exterior temperature display
• Transmission electronic control
• Automatic
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Daytime running lights
• 40-20-40 split-bench front seat
• Driver seat with 8-way directional controls
• Split-bench front seat
• Front seat center armrest
• Front passenger seat with 4-way directional controls
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Rear bench seat
• Fold-up rear seat cushion
• Full folding rear seats
• Four-wheel drive
• Security system
• Heavy-duty ride suspension
• Seating capacity: 6
• Trailer wiring harness
• Class IV tow rating

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 16.36
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4670
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3232
• Curb Weight - Rear (lbs): 2199
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 16,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1010
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1515
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: QIZ
• Front Tire Size: LT245/75R16
• Rear Tire Size: LT245/75R16
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 2335
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Aluminum
• Front Wheel Material: Steel
• Rear Wheel Material: Aluminum
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24.1
• Turning Diameter - Curb to Curb (ft): 46.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 227.7
• Width, Max w/o mirrors (in): 79.7
• Height, Overall (in): 76.2
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): 138.6
• Cab to Axle (in): 41.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 56.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 38.4
• Second Leg Room (in): 33.7
• Second Shoulder Room (in): 66.3
• Second Hip Room (in): 61.5
• Summary

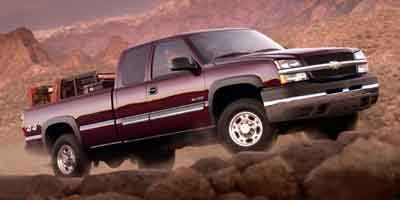

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Ext Cab 6.5' Fleetside
• Body Code: E63
